Class II A2 Biological Safety Cabinet For Cell Culture Lab

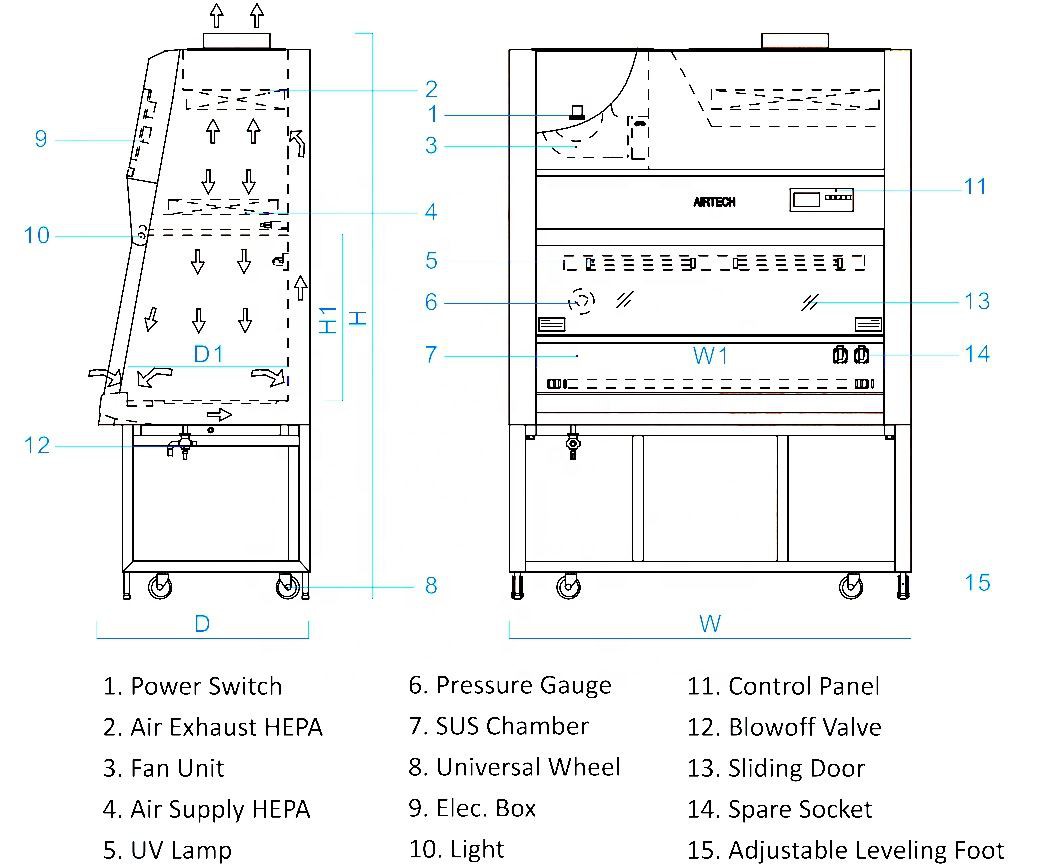

Product Structure

Power and Control Components

• Power Switch (1): Turns the cabinet on/off.
• Elec. Box (9): Manages electrical systems and fan operation.
• Control Panel (11): Controls fan, lights, UV lamp, and displays status.

Filtration System

• Air Exhaust HEPA (2): Filters exhaust air to protect the environment.
• Air Supply HEPA (4): Supplies clean air downward to protect samples.
• Fan Unit (3): Drives airflow to maintain inflow and downflow patterns.

Safety and Disinfection

• UV Lamp (5): Disinfects the work surface during non-working periods.
• Sliding Door (13): Adjustable window for operator protection and airflow control.
• SUS Chamber (7): Stainless steel work area, corrosion-resistant and easy to clean.

Structural and Mobility Components

• Universal Wheel (8): Allows easy movement of the cabinet.
• Adjustable Leveling Foot (15): Adjusts cabinet level for stability.

Monitoring and Auxiliary Equipment

• Pressure Gauge (6): Monitors pressure to ensure correct airflow.
• Light (10): Illuminates the work area.
• Spare Socket (14): Provides extra power for small devices.
• Blowoff Valve (12): Regulates internal pressure for airflow balance.
