Ductless Air-Filtered Chemical Storage Cabinet For Laboratory
Ductless Air-Filtered Chemical Storage Cabinet provides a safe and energy-efficient solution for storing volatile chemicals in laboratories. Equipped with activated carbon and particulate filters, it effectively captures harmful vapors without external exhaust, recirculating clean air back into the room. Featuring durable all-steel construction, adjustable shelves, and a smart touchscreen control system for real-time monitoring and alarms, this cabinet ensures continuous 24/7 air purification, protecting users and the environment while improving lab safety and compliance.
Description
Product Details ofDuctless Air-Filtered Chemical Storage Cabinet For Laboratory
Specification
External Dimensions: 1915 × 810 × 530 mm
Internal Dimensions: 1455 × 807 × 445 mm
Door Type: Double-opening 8mm acrylic doors with metal frame
Shelf Configuration: 8 adjustable ABS chemical-resistant trays
Shelf Load Capacity: 75 kg/m³
Air Exchange Rate: ≥200 times/hour
Storage Capacity: 128 bottles (500ml each)
Noise Level: ≤60 dB
Power Supply: AC 220V / 50Hz
Power Consumption: 50W
Fan: 1 brushless centrifugal fan, 570 m³/h, 3100 rpm
Filters: 2 sets of Type D filters
Control System: 7-inch touchscreen controller
Alarm System: VOC, fan failure, and temperature/humidity alerts
Optional Accessories: PP acid/alkali box, PE reagent transfer box
Advantage
- Ductless, Eco-Friendly Ventilation: Filters hazardous fumes internally and recirculates clean air, reducing HVAC energy costs and preventing outdoor pollution.
- Dual Filtration System: Equipped with high-efficiency activated carbon and particulate filters to capture most chemical vapors and airborne particles.
- Quiet, High-Performance Fan: Features a brushless centrifugal fan with a noise level of ≤60dB, offering strong airflow and stable operation.
- Smart 7″ Touchscreen Display: Real-time monitoring of temperature, humidity, fan status, and VOC concentration, with an integrated alarm system.
- Energy-Saving & Cost-Efficient: No need for external ductwork or exhaust systems-easy to install, operate, and maintain.
- Robust Safety Design: Durable all-steel construction with 8mm transparent acrylic double doors for clear visibility and chemical resistance.
- Flexible Storage Space: Comes with 8 adjustable ABS trays, resistant to acids and alkalis, supporting up to 128 bottles (500ml each).
- Continuous Air Purification: Designed for 24-hour operation, ensuring improved lab air quality at all times.
- Certified for Safety & Performance: Compliant with NFX 15-211:2009, ASHRAE 110:1995, JG/T38-2012; certified by ISO9001, ISO14001, OHSAS18001, and CE.
 |

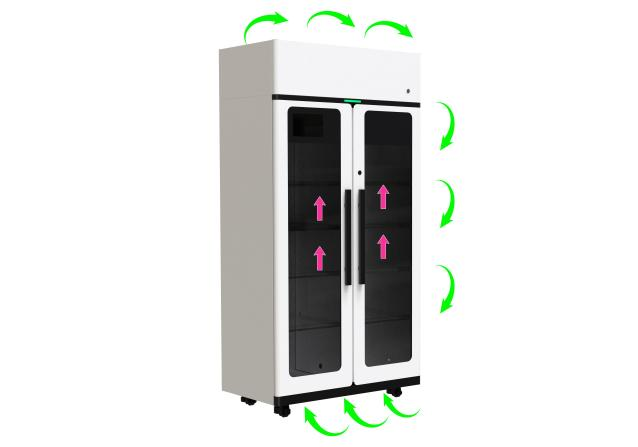

Working Principle
|
