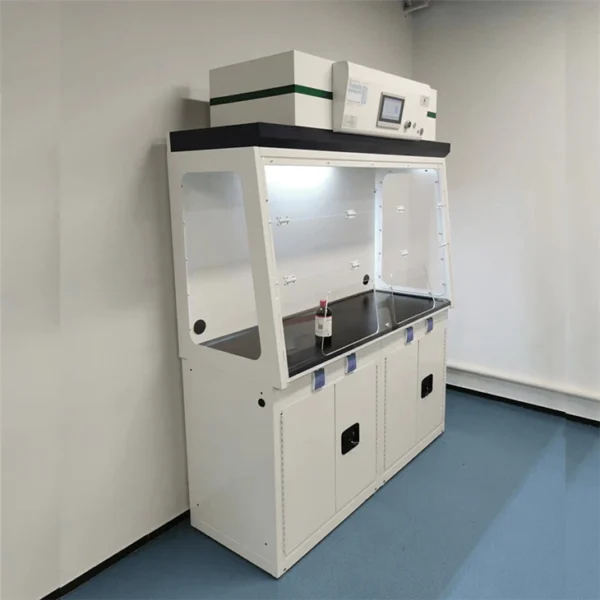

Ductless Fume Hood BC-DM1600
A ductless fume hood product for laboratory projects. Final product details and applicable use are confirmed for the approved project.
Description
This ductless fume hood should be matched to the chemical scope and maintenance plan, not the model name alone. Confirm the process, filter requirements, and installation conditions before approval.
Product Details ofDuctless Fume Hood BC-DM1600 |
|
 |
Filtered chemical gas concentration is lower than 1% of the TWA value, SF6 leakage concentration is below 0.5ml/m (certified for OEB5 level protection) |
 |
 |
 |
 |
 |
| Brushless Ultra-Quiet Fan,no spark or static | Extra-Large LCD Display | Double Monitoring of VOCs, Temperature, and Humidity |
High efficiency filtration system |
ltem List Management |
Product Features |
||
|
Advantages No need for ductwork installation, making it easy to set up with no external exhaust. Environmentally friendly design. Features a brushless fan for quiet and energy-efficient operation |
Intelligent Monitoring And Alarm System Dual-probe design enables real-time digital monitoring and alarm for temperature, humidity, and VOC concentration |
High-Efficiency Filtration System Flexible filtration modules can be equipped with pre-filter powder filters, high-efficiency molecular filters, and HEPA powder filters to meet the storage requirements of different chemicals and achieve optimal adsorption effects |
|
Ltem List Management of Operated Chemicals |
Ergonomics Ergonomically designed tilted front panel for optimal visibility and comfortable operatio |
7-Inch Large Screen Display Resolution: 1024×600,perfect visual effe |
 |
|
 |
 |
|
| BC-DS8000 | BC-DS1000 | BC-DM1275 | BC-DM1600 | BC-DL1600 |
| Model | BC-DS800 | BC-DS1000 | BC-DM1275 | BC-DM1600 | BC-DL1600 |
|---|---|---|---|---|---|
| External size
(W*D*H) mm |
800*620*1245 | 1000*620*1245 | 1275*620*1245 | 1600*620*1245 | 1600*790*1245 |
| Internal size
(W*D*H) mm |
781*574*934 | 981*574*934 | 1256*574*934 | 1581*574*934 | 1581*744*934 |
| Air handling capacity | 230 m³/h | 230 m³/h | 690 m³/h | 690 m³/h | 690 m³/h |
| Voltage | 110-240 V | 110-240 V | 110-240 V | 110-240 V | 110-240 V |
| Frequency | 50-60 HZ | 50-60 HZ | 50-60 HZ | 50-60 HZ | 50-60 HZ |
| Power | 42W | 42W | 126 W | 126 W | 126 W |
| Current | 2 A | 2 A | 6 A | 6 A | 6 A |
| Sound level | 40-52 dBA | 40-52 dBA | 40-52 dBA | 40-52 dBA | 40-52 dBA |
| Control system | 1 set | 1 set | 1 set | 1 set | 1 set |
| VOC alarm system | 2 set | 2 set | 2 set | 2 set | 2 set |
| Temperature and
humidity alarm system |
1 set | 1 set | 1 set | 1 set | 1 set |
| Operation hole type | trapezoidal | trapezoidal | trapezoidal | 1 set | 1 set |
| Base mm(Optional) | 800*550*825 | 1000*550*825 | 635*550*825(2unit) | 800*550*825(2unit) | 800*720*825 (2unit) |
Optional |
|
|
Optional filter models : 0G: Organic Filter AM: Ammonia Filter AG: lnorganic Filter HEPA H14: HEPA filter FO: Formaldehyde Filter |
Optional Alarm : Ammonia Alarm HCL Alarm Formaldehyde Alarm |
 |
 |
 |
 |
 |
 |
