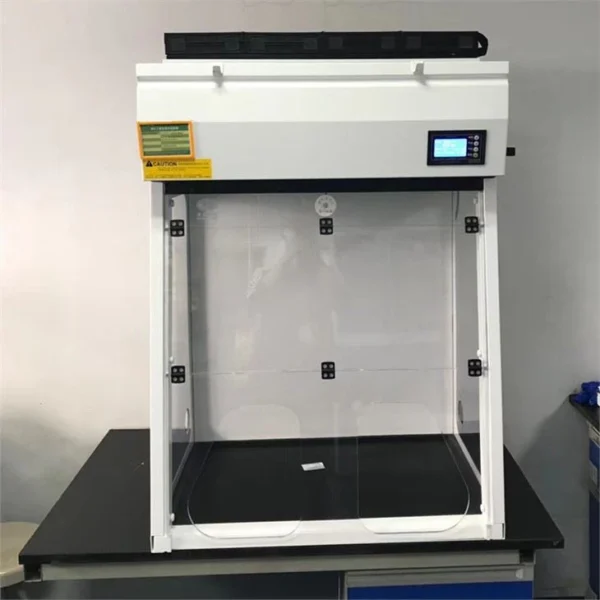

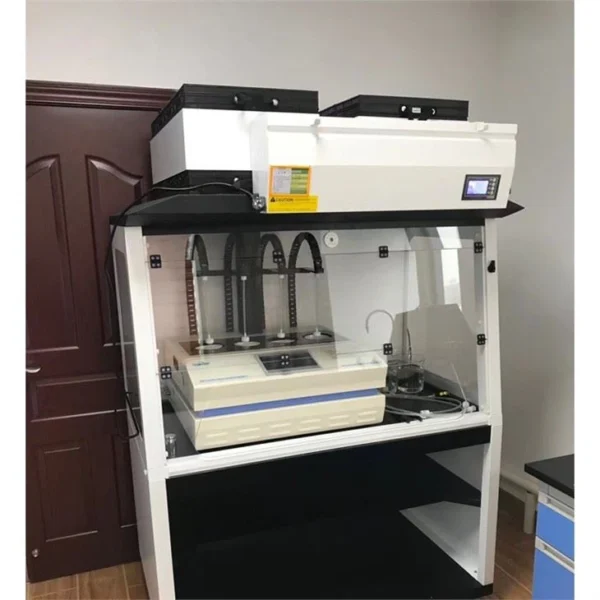

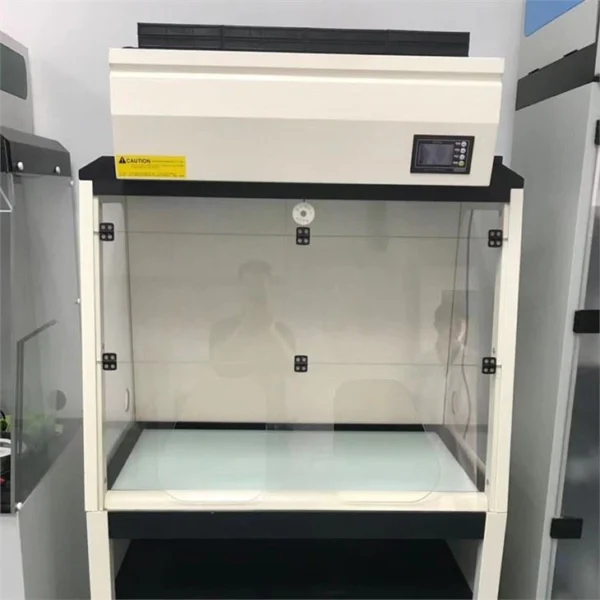

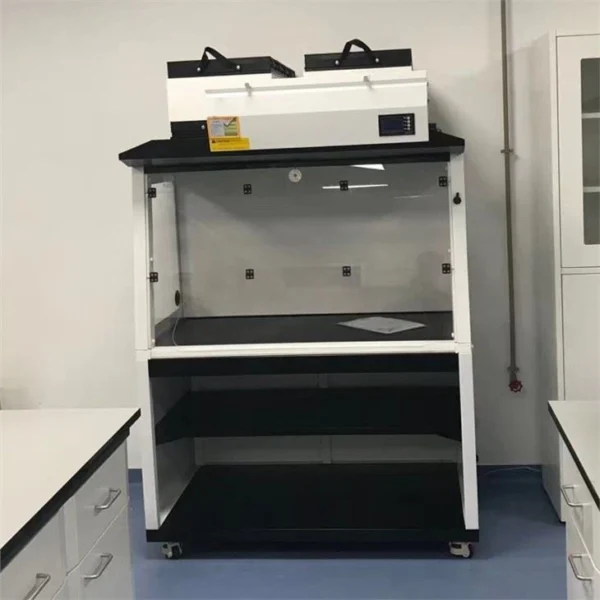

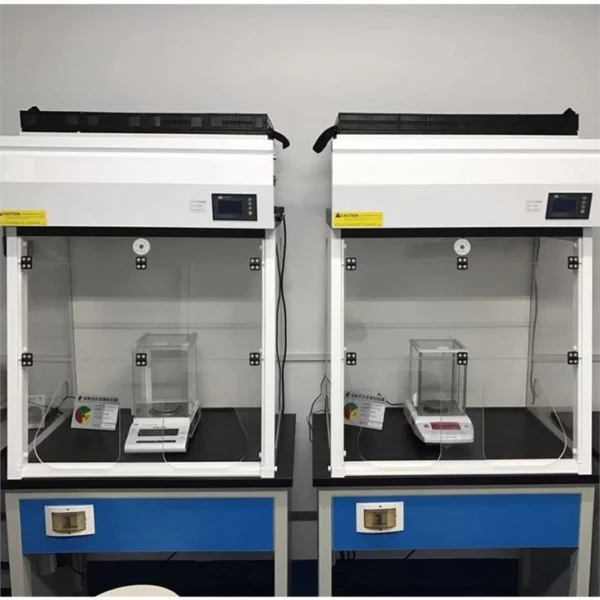

Portable Table Top Fume Hood
The clean air fume cabinet does not require external piping, and has a built-in fan and filter on the top. Turn on the switch, the fan operates to form a negative pressure in the cabinet to ensure that the chemicals will not overflow.
Description
Product Details ofPortable Table Top Fume Hood
Portable Table Top Fume Hood
Metal parts: the main material is 1.2mm galvanized steel sheet, coated with acid and alkali resistant epoxy polyester coating;
Load-bearing parts: 2.0mm thick galvanized steel, strong load-bearing capacity, coated with acid and alkali resistant epoxy polyester coating;
Side plate: 6mm thick acrylic plate embedded with 1.2mm galvanized steel plate;
Front panel: 8mm thick acrylic sheet
Filter module: polypropylene (PP material)
Interface: Anti-electromagnetic interference power cord.
Product parameter
| Dimensions (mm) | Inside: 986*560*760
Outside: 1000*620*890~1350 |
| Filter module | 1 |
| Number of filters | 2 |
| Air volume | 240m³/h |
| Surface wind speed | 0.4-0.6m/s |
| Noise | ≤50dba |
| Voltage/Current | 220/1.4 |
| Power | 30W |
LED display
- Computerized control panel, showing the temperature in the cabinet.
- online monitoring of air quality changes in the laboratory and display of ppm value (optional), real-time monitoring of changes in chemical concentration at the filter outlet and display of ppm value (optional).
- Online display of surface wind speed, accurate measurement of high-sensitivity probes.
- display of fan speed, etc.; alarm point setting: users can set appropriate alarm points by themselves to improve the laboratory safety level.
Epoxy resin countertop
Featuring a one-piece core with excellent chemical stability, the panel is made from special high-pressure kraft paper and phenolic resin cured at high temperatures, giving it strong impact resistance. The flame-retardant material offers high temperature resistance, while the specially designed surface structure makes the product scratch-resistant and wear-resistant.
Filter
Primarily designed for organic gases; YJ filter optional.
TY-Type Filter: Offers strong adsorption capacity for both acid gases and organic gases.
HEPA Filter (H14): Designed for particle filtration, with a filtration efficiency of 99.995% for particles larger than 0.3μm.
